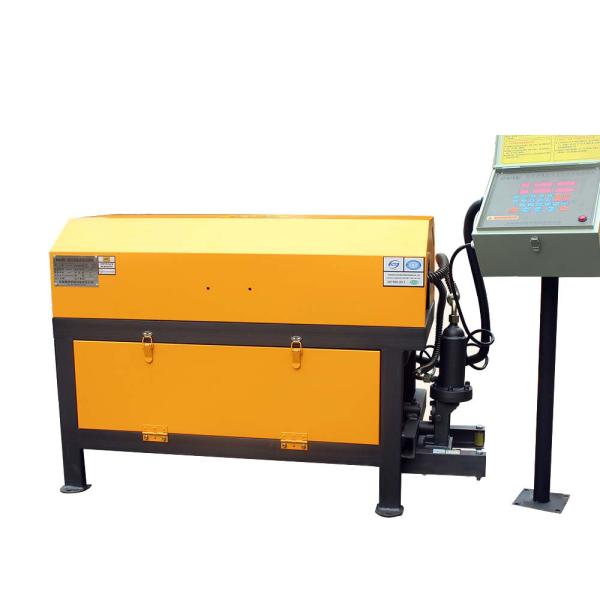

10mm Rebar Straightening And Cutting Machine 380V 415V 440V

Name: 10mm Rebar Straightening And Cutting Machine 380V 415V 440V
Brand: GUTE
Price: 900 USD

Wholesale 10mm Rebar Straightening And Cutting Machine 380V 415V 440V from china suppliers

Brand Name : GUTE

Model Number : SGT5-12A

Certification : CE,ISO 9001:2000

Place of Origin : CHINA

MOQ : 1set

Price : 900-1200USD/SET

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 200set/month

Delivery Time : 20 work days

Packaging Details : plywood case

MODEL : SGT5-12A

CUTTING CAPACITY : 5-10 mm (ob ≤650N/mm2)

STRAIGHTENING MOTOR : YB2M4-4

STRAIGHT-CUT MOTOR POWER : 7.5 KW-4P

PULLING SPEED : 38m/min

NOISE VALUE (1m away) : ≤80dB(A)

WEIGHT : 248 Kg. + 15 Kg.

DIMENSIONS (L*W*H) : 1300*530*830 mm

Contact Now

• SGT5-12 adopts digital controlling, hydraulic system with one-way cylinder automatic return and double motor.

• Control cabinet features the ENCODER for the straightening and cutting adjusting, it can memorize up to 20 batches of different length and number of pieces, DIGITAL CONTROL with setting displaying on the screen for faster and easier operations.

• One dust proof motors to control straightening part and hydraulic-cutting system for the lowest failure rate.

• 2mm thick fully-enclosed external case to prevent dust infiltration (especially into the hydraulic system) and for safer operations.

• STRAIGHTENING WHEELS, SQUARE BLADE and ROUND BLADE made of high-quality alloyed steel with proper heat treatment (quenching) to ensure high performances also under heavy loads and long working life.

• ISO 9001:2008 certification.

STEEL BAR STRAIGHT-CUTTER SGT5-12
CUTTING CAPACITY	5-12 mm (ob ≤450N/mm2)	5-10 mm (ob ≤650N/mm2)
STRAIGHTENING MOTOR	YB2M4-4
STRAIGHT-CUT MOTOR POWER	7.5 KW-4P
PULLING SPEED	38m/min
NOISE VALUE (1m away)	≤80dB(A)
WEIGHT	248 Kg. + 15 Kg.
DIMENSIONS (LWH)	1300530830 mm
CERTIFICATION	ISO 9001:2008
